Automated Power Catwalk

THS-Italy is specialized in design and manufacture of automatic systems for hydraulic power catwalk for oil & gas industry.

We are THS

Why choose Us?

Our Mission

THS S.r.l. is a leading provider of Pick Up & Lay Down systems & Mechanized Pipe Racks for the oil industry in Italy, North Africa and East Europe. Since the 2000, THS has developed a strong reputation to customers for proficient technology, high quality, safety and well maintained equipment. The goal is to be recognized as leader in handling equipment over the market and related to existing systems.

Why choose Us?

What we Do.Make our Customers Happy.

Our PULD machines are the latest system in the market to simplify and safely speed up the handling of pipe from the pipe- rack to rig floor and vice versa, dramatically reducing the risk of accidents during the most dangerous operation in rig activities. 70% of LTAs and 85% of Fatalities are related to Pipe Handling and Catwalk activities.

Call us today at +39 335.6560048 or Email us at info@ths-italy.it

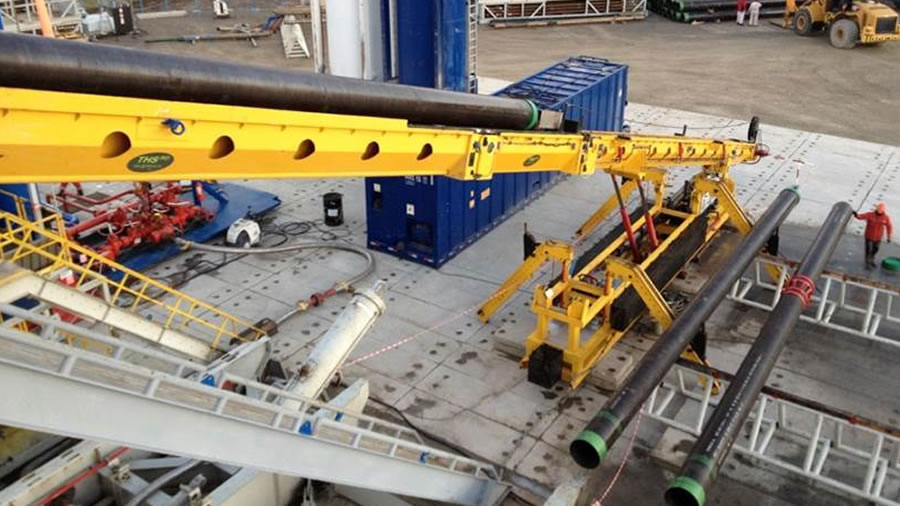

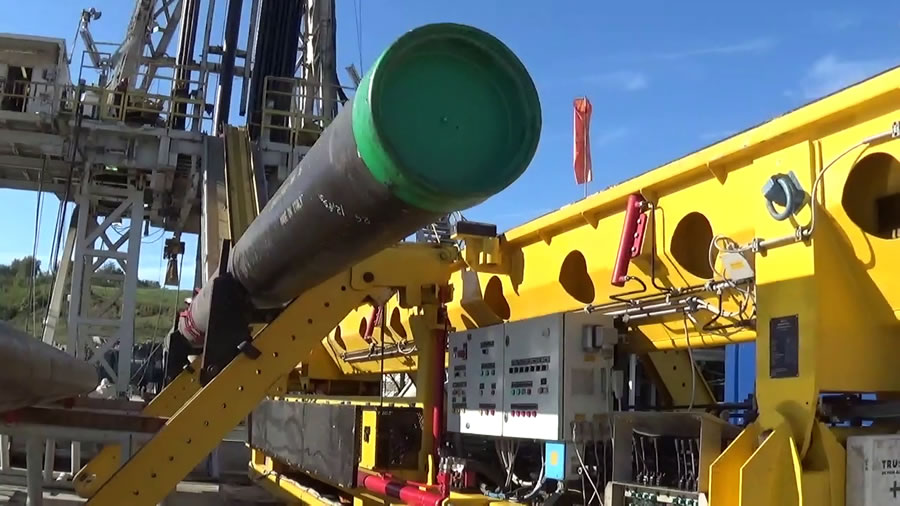

THS POWER CATWALK

On every drilling operation, tubular handling is essential.

Our standard type machine is able to fit any type of drilling and work-over rig.
THS dual pipe system able to run two pre-assembled range III pipe at the time.
In addition THS developed (patent pending) a new hydraulic remote controlled system to serve snubbing unit up to 30m. high for pipe up to 9⅝” size.

Safe

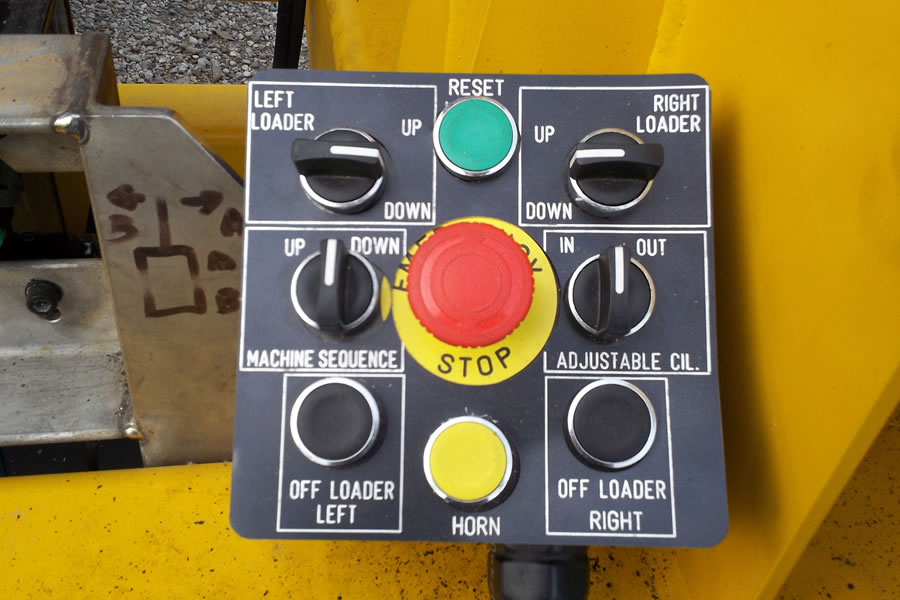

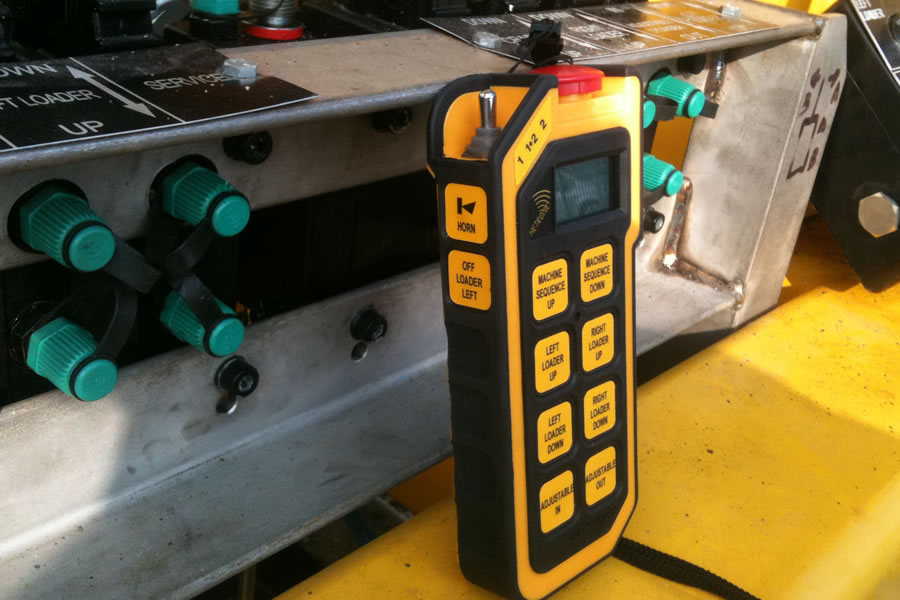

Radio Remote control and all safety devices eliminate the hazard associated to crane usage and swinging loads that might lead to major injuries or fatalities.

Efficient

Very reliable, no break-downs with a proven track record. Can be used on bad weather conditions and strong wind. Other strong reason is the speed of operations and the capability to handle also D.C. and H.W. pipes. Can be coated to handle CRA material.

Economic

Save money by reducing time with 30% compared with conventional operations.

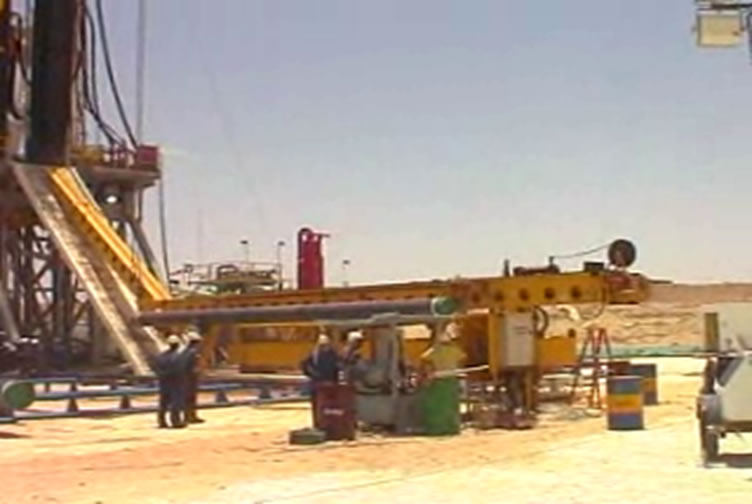

CatWalk

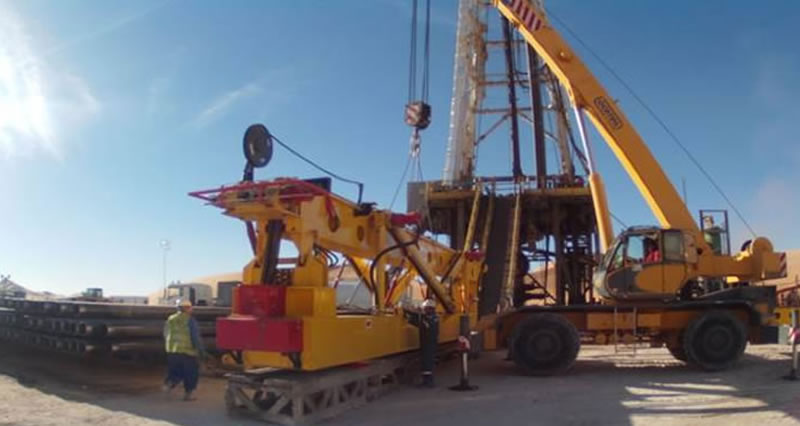

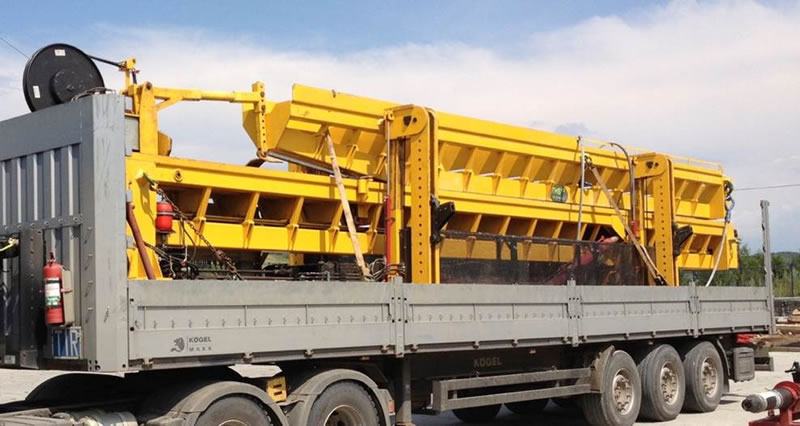

Easy to moveFits all in only one truck

CatWalk

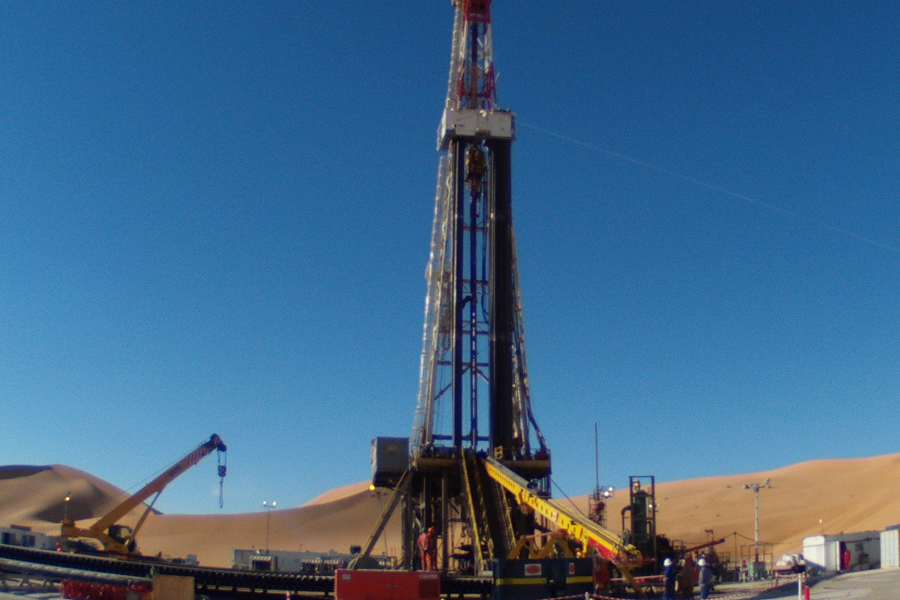

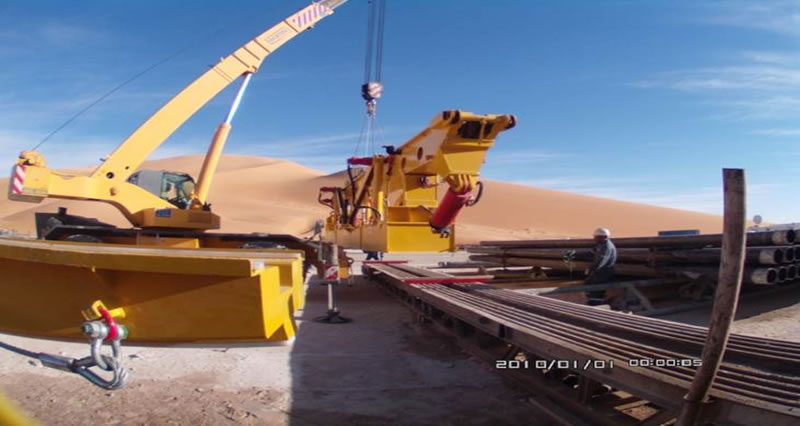

Rig UpThe rig up time is very minimal.

CatWalk

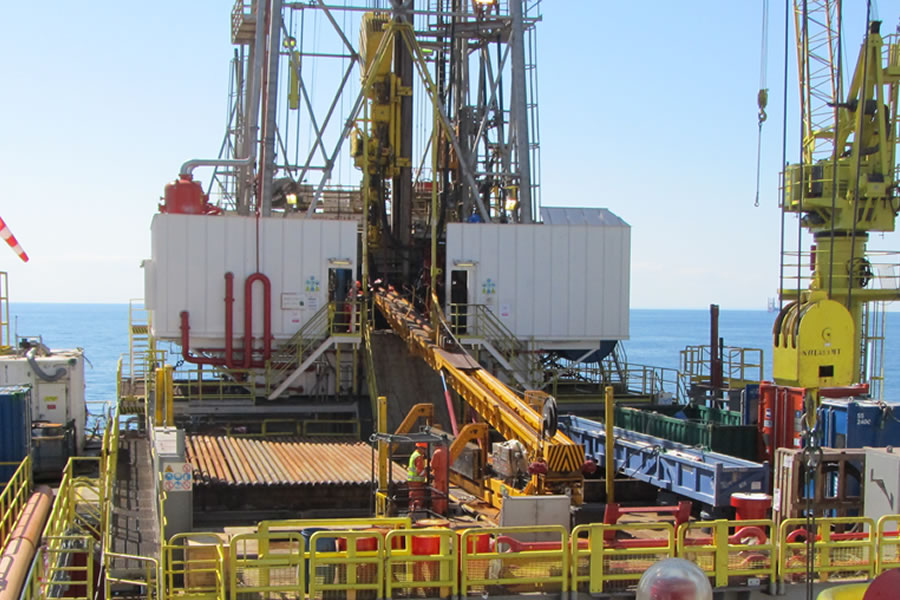

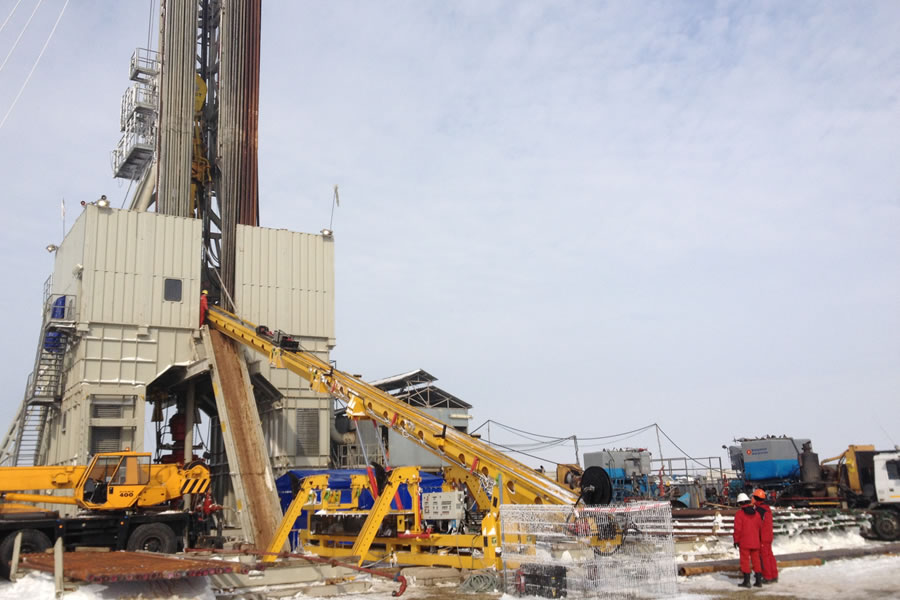

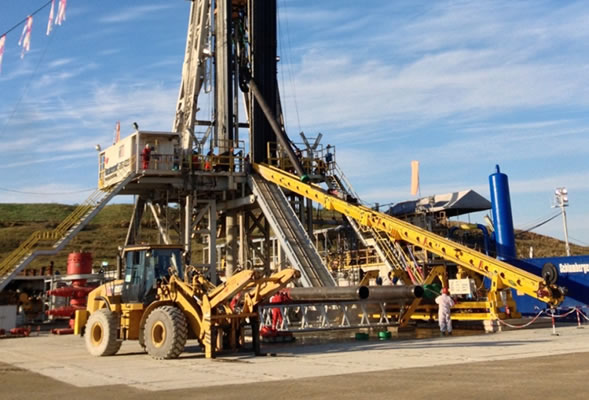

Rig UpPositioned on existing catwalk, no needs to move or modify anything on the rig.

Mechanized Pipe Rack

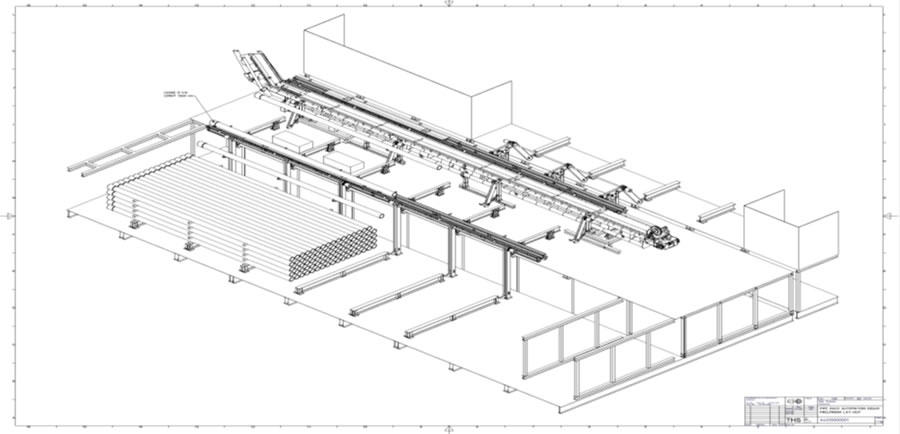

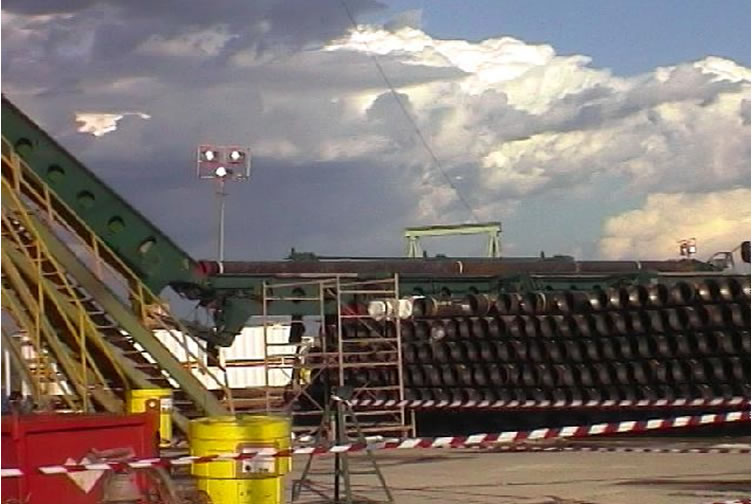

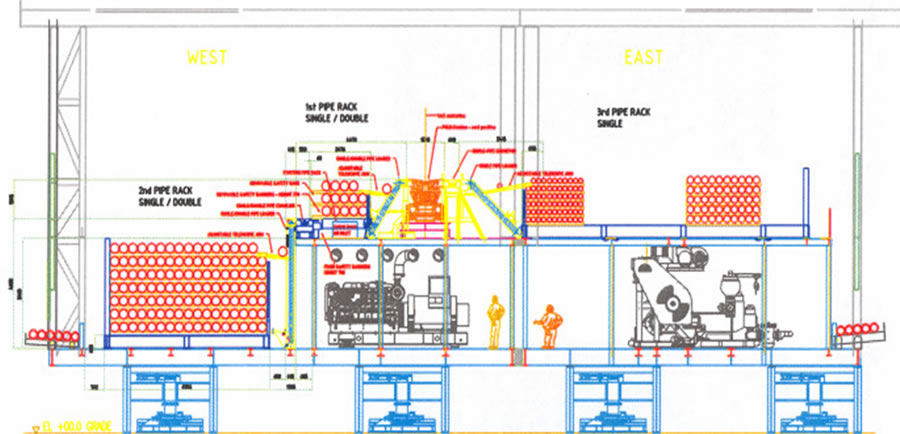

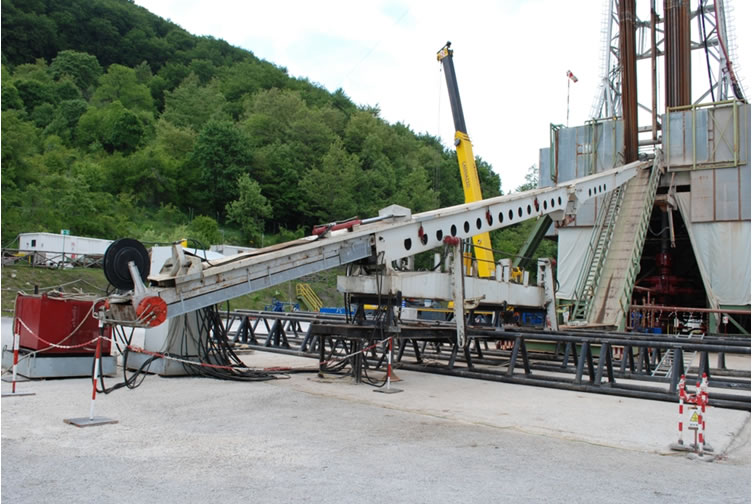

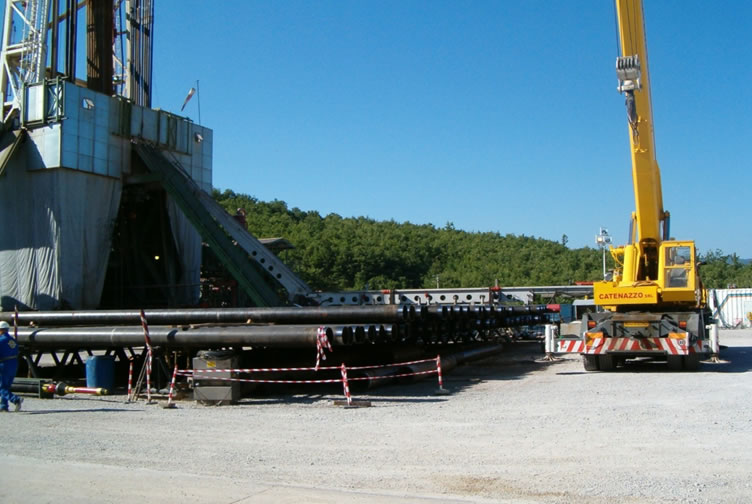

To solve the problems due to different level of pipe racks in most off shore rigs, THS developed a mechanized pipe rack (patent pending) able to collect pipe from any level and feed directly the pipe handling machine without needs of any other device, included overhead cranes and personnel. The pipe rack will have the same performance and capability of the pipe handling system and will be operated by the same operator from the rig floor.

Models

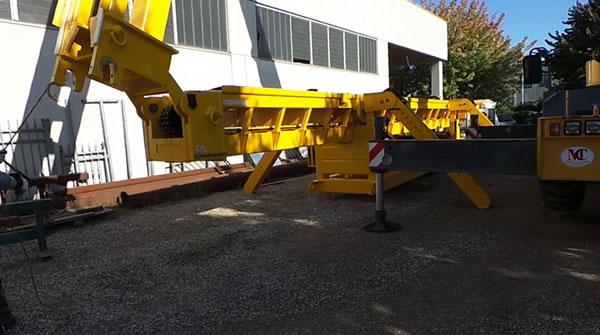

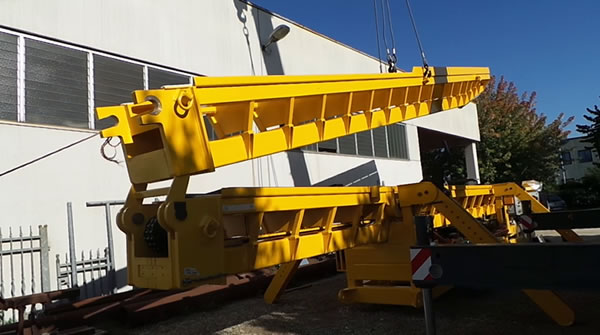

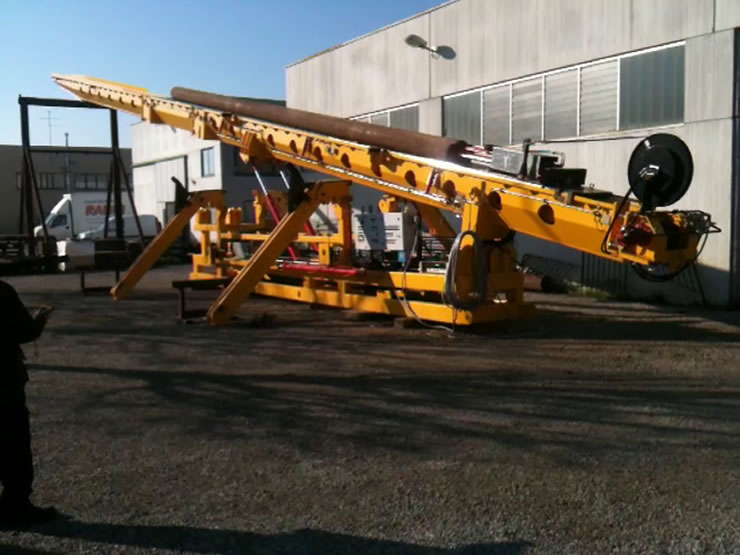

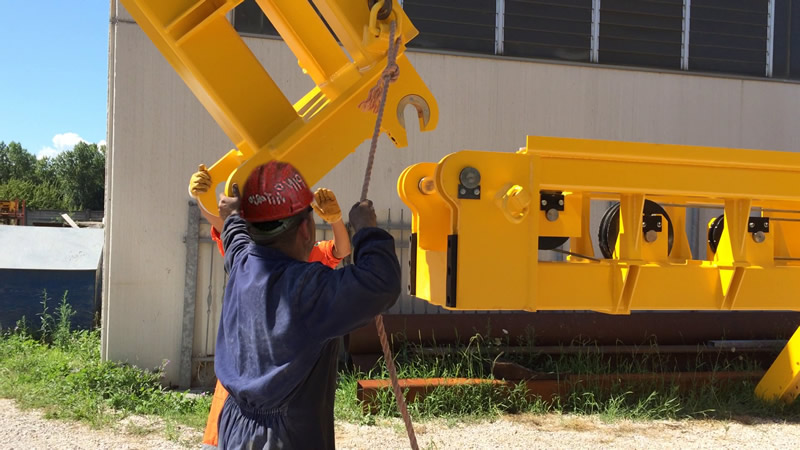

Rig Up & Rig Down Upper arm Single Lift

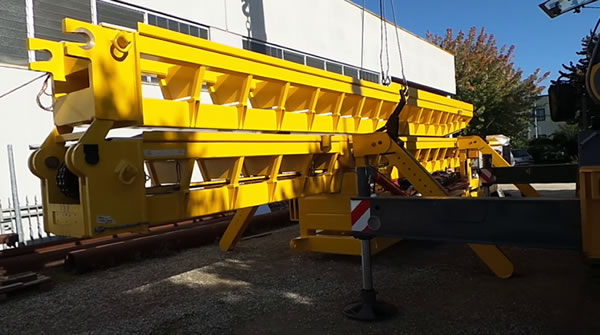

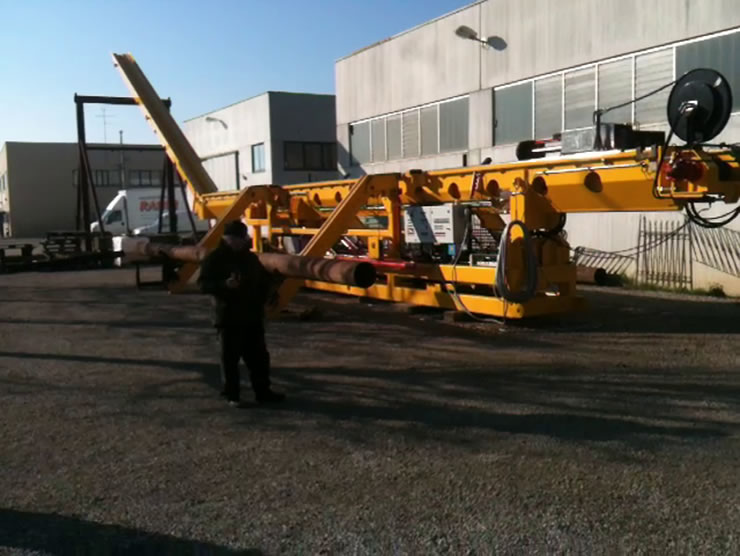

Rig Up & Rig Down Loader Legs Single Man Operation

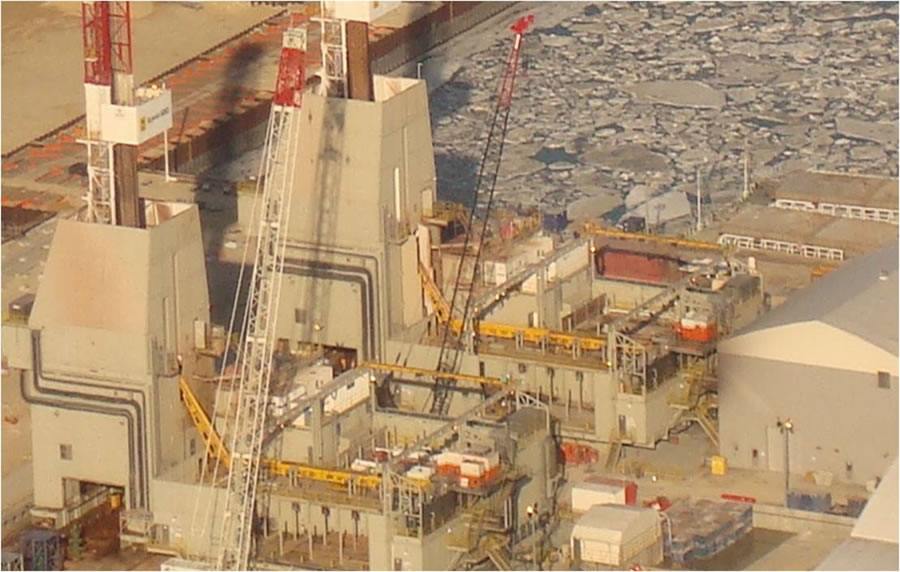

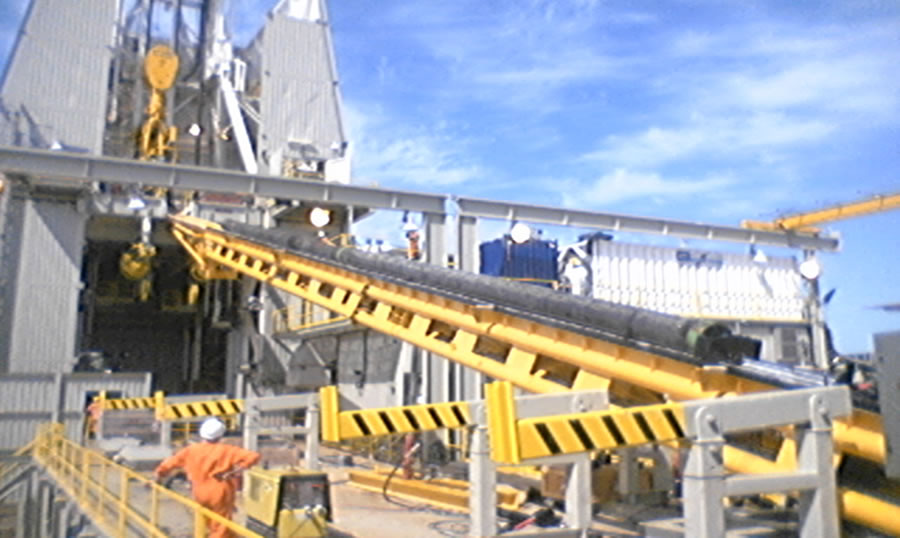

Dual Pick Up & Lay Down Machine

THS Srl has also developed and patented a new machine able to handle two pre-assembled pipe to speed up operations with the same safety level. Running two pre-assembled pipes at the time reduce 50% casing running time.

THS-7

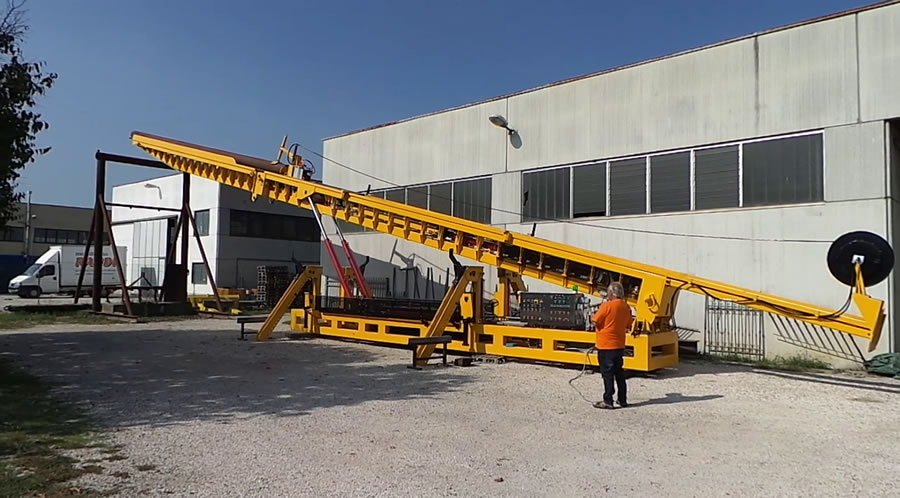

THS-11

No hydraulic motors no chains (40 Joints/Hr).

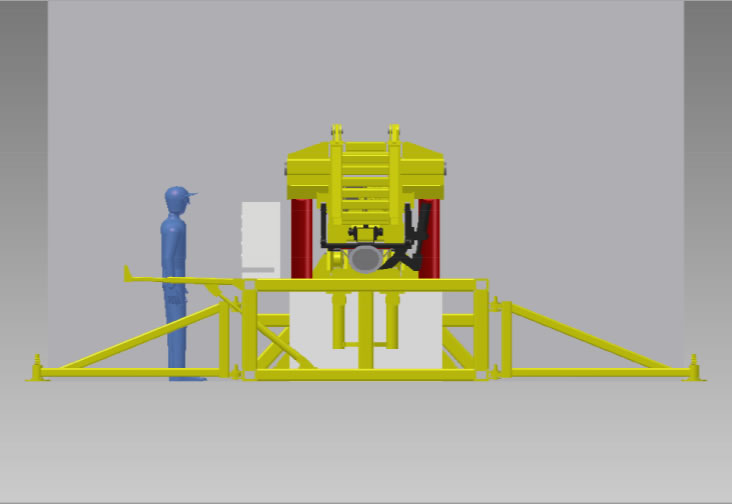

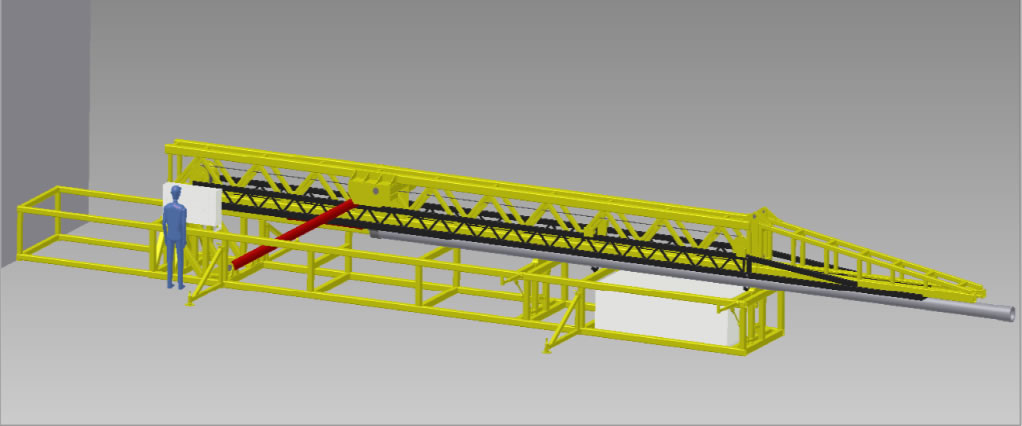

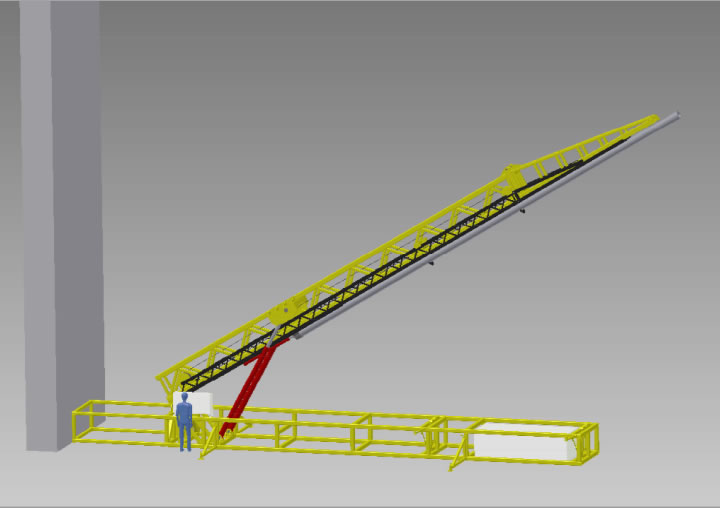

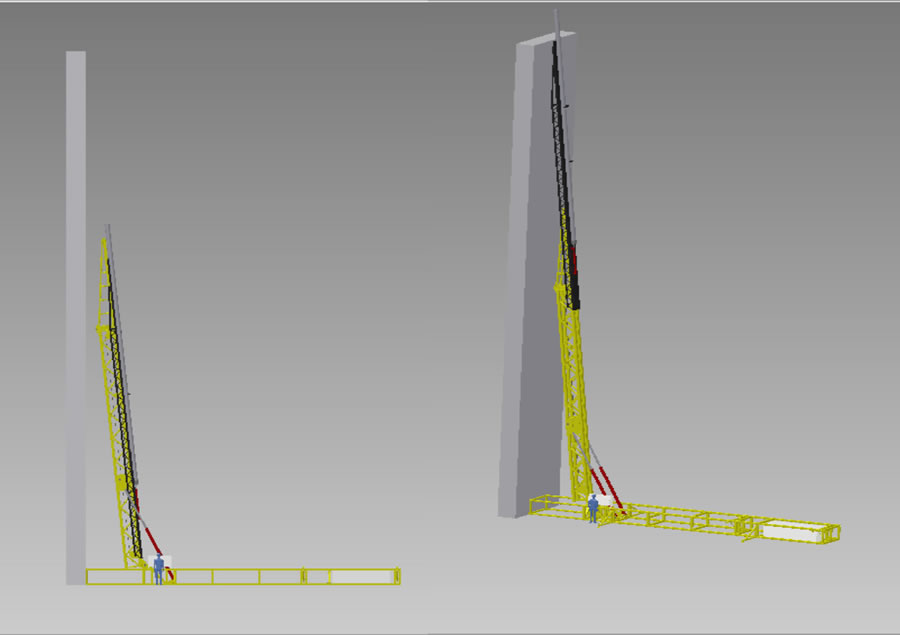

THS-28 HWO

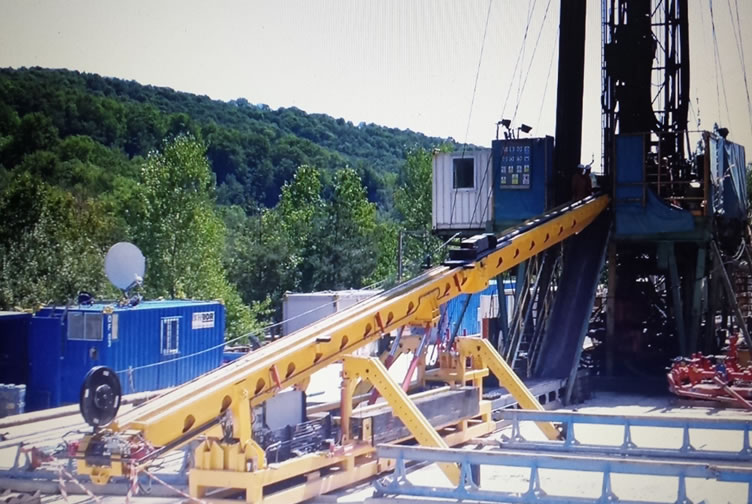

Unique Snubbing Unit Pipe Handler Machine.

Technical Details

We reserve the right to introduce, in any moment, changes in components, essential parts or equipments which we shall consider convenient to the purpose of improvement or for any other requirement.
Description Unit Tecnical Specifications
Equipment type Elettromeccjanical
Noise Level dB[A] 77,2
Vibration Absent
Dust, gas, radiation emission No-one
Elettromagnetic Emission No-one

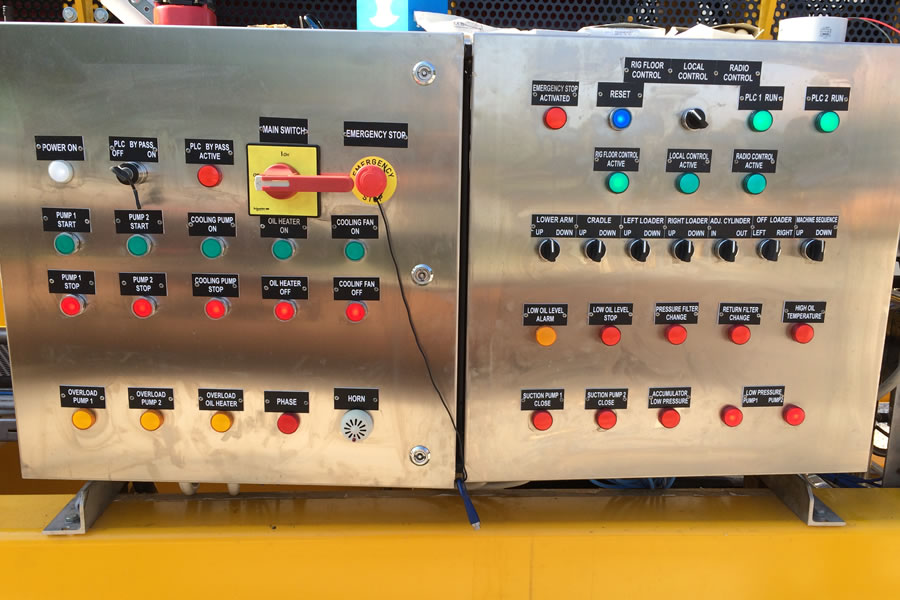

Remote Control intrinsically safe 2 x Zone I (1 radio)
Max width c/w loaders mm 2500
Max Machine Length mm 28500
Max rig floor Height mm 12000
Machine body Ton 16/18
Elettrical motor 2 x 25 KW
Hydraulic pump 2 Variable displacement load sense
Elettrical system feed Alternate
Fee machine tension V 380-480
Frequency Hz 50-60
Accessory feed transation V 24
Equipment Protection Grade IP 65
Max Pressure hydraulic system PSI 2.500
Max Flow Rate hydraulic system L/min 200
Connection Rigid steel lines included in the frame
Fluid Hydraulic oil according to area
Pipe Weight Range III - up to 4.500 kgf
Lenght of pipe to be lifted mm 15000
Diameter od pipe to be lifted Inches Up to 30''
Cycle time min Less than 1.5 min regardless size
Safety Factos Minimum 3
Suitable for temperatures down to -20° On request down to -40°

PULD & PIPE RACK SPECIFICATIONS

Pipe Size: Drill Pipe, Drill Collar, Tubing, Casing up to 30''
Max Load single/double pipe 4800 kpf
Max Length single pipe 15 m
Max Length double pipe 30 m
Lift Height Up to 13 m from ground level
Speed Variable, down to 1.5 min x cycle
Controls Manual, Remote, Radio

HWO PIPE HANDLER MACHINE SPECIFICATIONS

Pipe Size up to 9 5/8”
Max Load 1.3 t
Lift Height Up to 30m from ground level
Speed Down to 2 min.
Controls Manual, Remote, Radio
